AEM Water/Methanol Solenoid – 200PSI 1/8in-27NPT In/Out
PD Notes: Solenoids are recommended for users that have nozzles placed after the throttle body (throttle body spacers or direct port methanol). Check valves can be pulled open by manifold vacuum which causes methanol to be pulled through the line when it shouldn’t be.

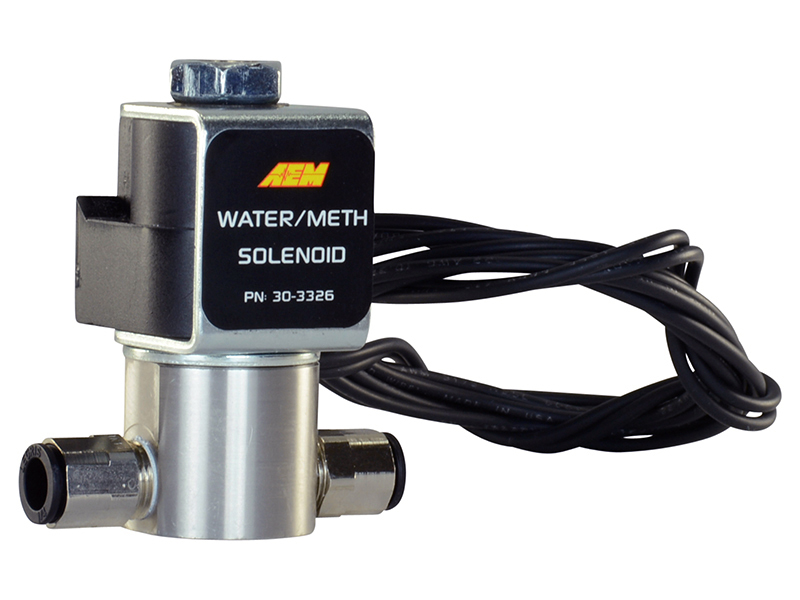

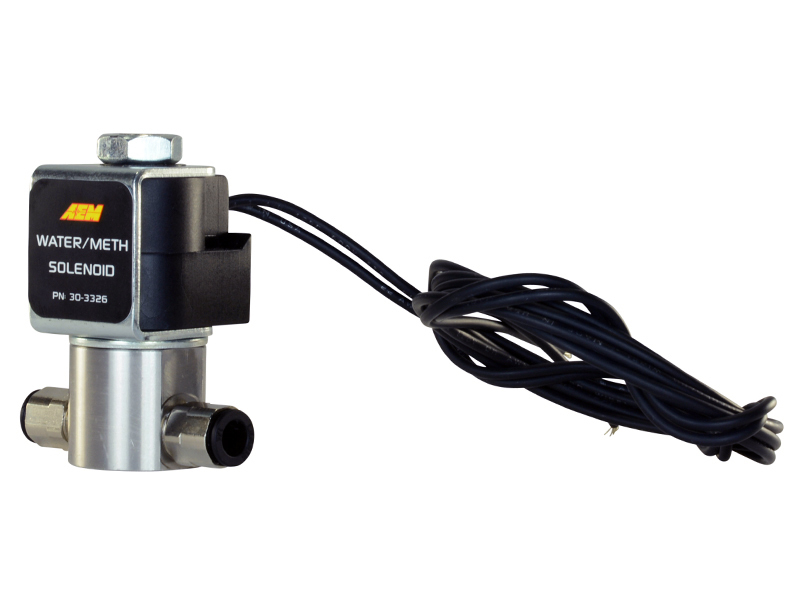

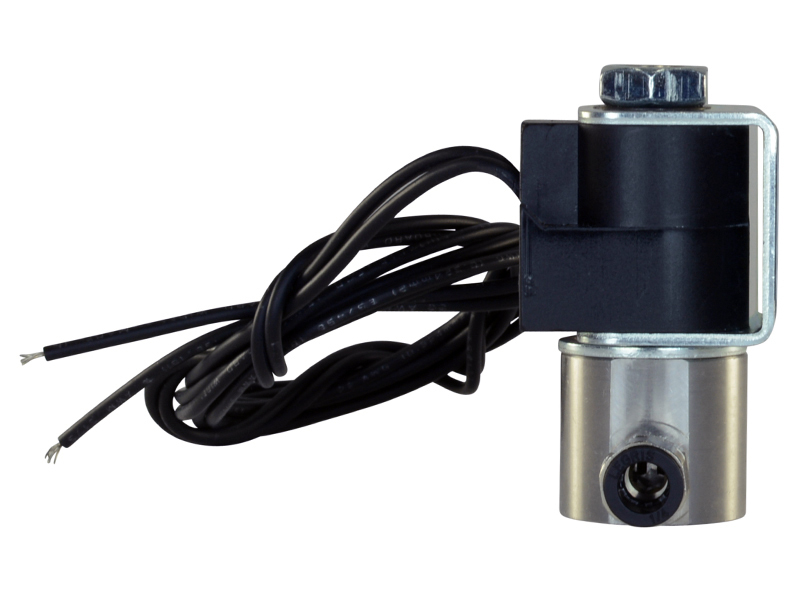

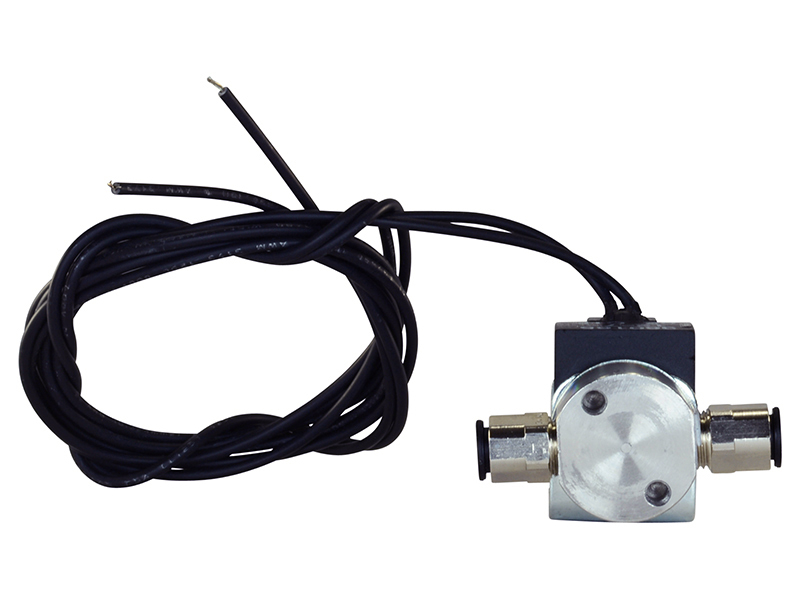

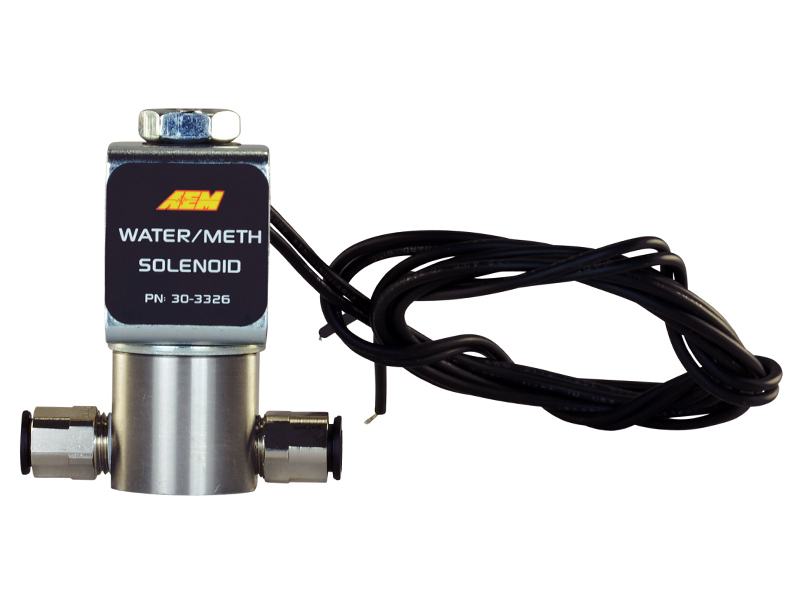

AEM’s stainless steel Water/Methanol Injection Solenoid (PN 30-3326) eliminates any chance of water/methanol flow into the inlet when the WMI system is not engaged. This affordable water/methanol injection accessory features high flow capability (3,600cc/min) and an impressively low current draw of only 0.75A that does not require the use of an additional relay.
The valve body features include 1/8” NPT ports with included push-to-lock ¼” hose fittings for easy connection and EPDM seals that stand up to corrosion for years of reliable use. It’s an inexpensive insurance policy to protect your high performance engine regardless of the brand of water/methanol injection system you are using!
- High flow rating (3600 cc/min @ 150 psi)
- Low current draw (0.75A @ 13.5V)
- No additional relay required
- Standard 1/8”- 27 NPT inlet/outlet with included ¼” push-to-lock hose fittings for easy installation
- Fast response time
- Tested to 200 PSI
- Stainless steel enclosure and internals with EPDM seals for corrosion resistance
- Flying leads simplify connection with user desired connector
