Damond Motorsports Mazdaspeed Throttle Body Spacer



Product Details

Need a nice clean setup to inject additional fluid into your air stream?  Don’t want to tap pipes on your car?  Look no further.

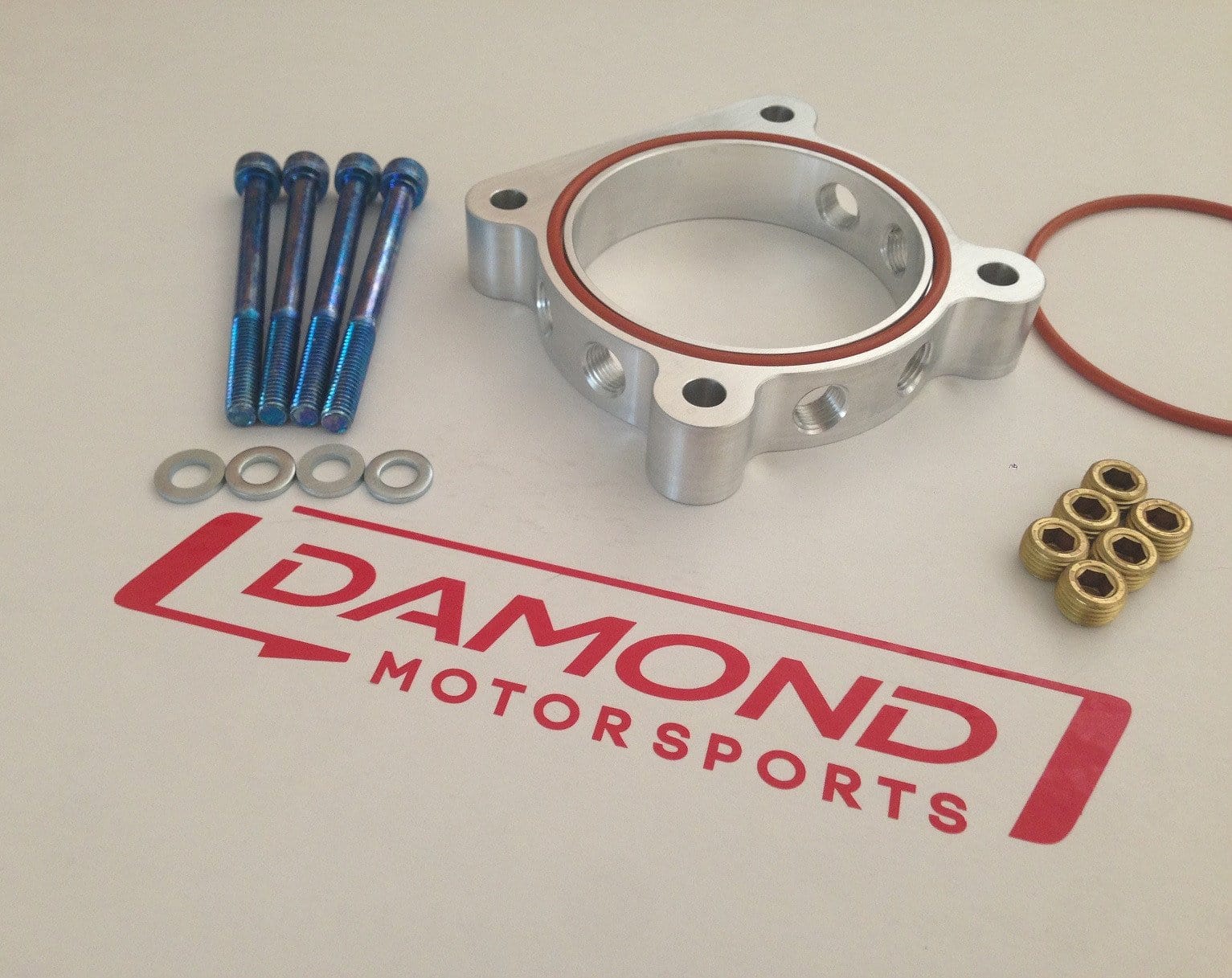

The Damond Motorsports Throttle Body Spacer has six 1/8″ NPT ports to hook up whatever you want to inject right before the intake manifold.  It sandwiches between your throttle body and intake manifold and allows you to thread in multiple nozzles, lines, or injectors for as much as 800 hp of fuel!  The spacer comes with all the hardware you need for an easy install, including bolts, washers, and all the plugs you’ll need.

This spacer uses an o-ring on the throttle body side and stock throttle body gasket on the manifold side, so 1 OEM gasket is needed total(in most cases you can re-use your OEM gasket).  Please select the option you need for additional gaskets.  Supplied gaskets will be OEM Mazda gaskets.

Will work with stock TMIC on Mazdaspeed 3 2007-2013 and Mazdaspeed 6 2007.  You will need to trim the cold side boost tube 16mm.

Will NOT work with Mazdaspeed6 stock cold pipe.

Injectors and/or nozzles are not included.

Weight 2 lbs
Dimensions 6 × 6 × 6 in
