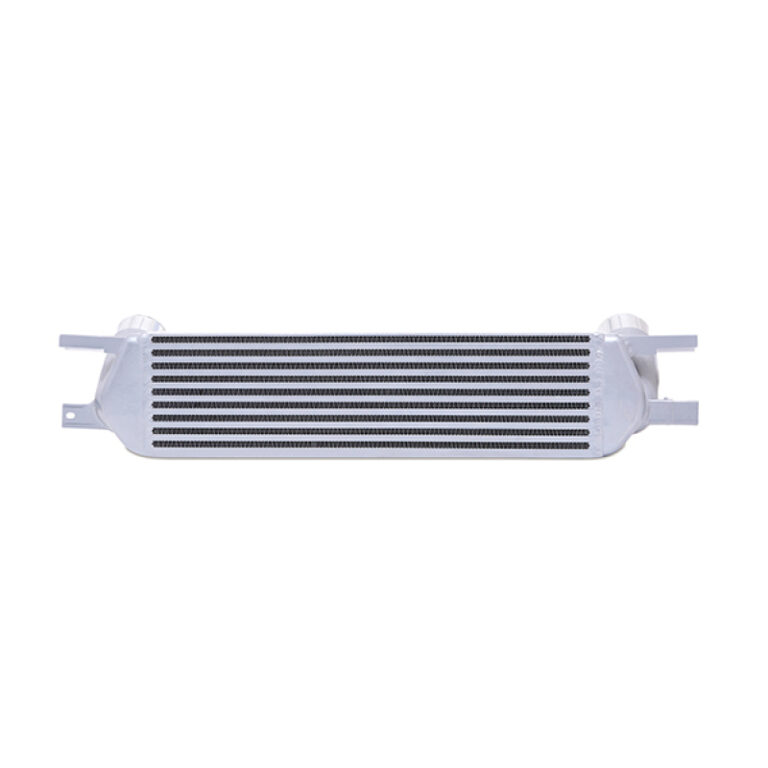

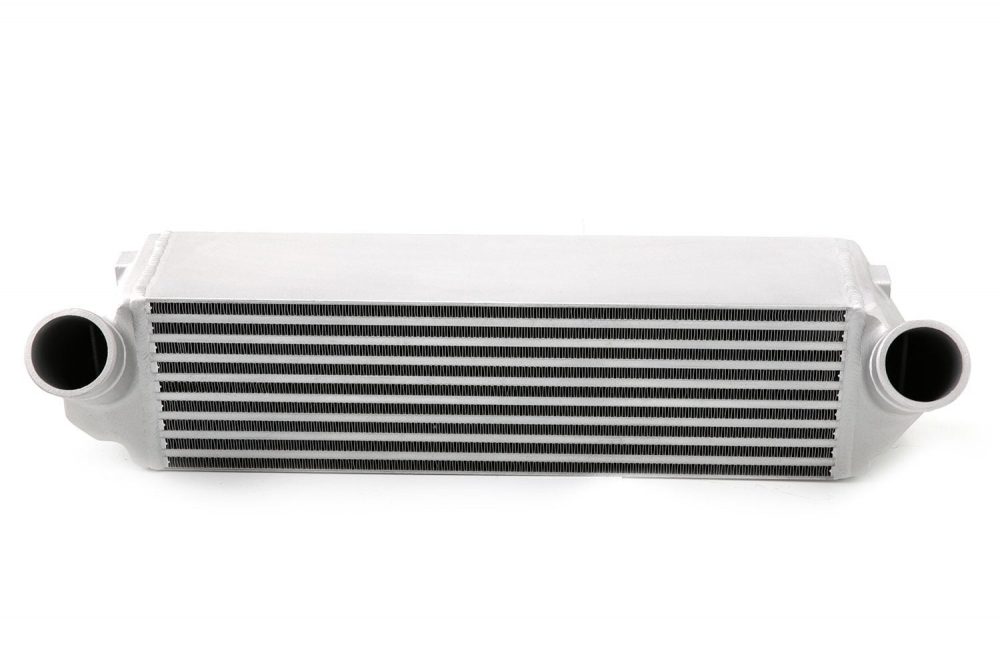

cp-e™ ΔCore™ EcoBoost Front Mount Intercooler

-

PD Notes: Intercoolers are one of the first mods we recommend to people that are looking to mod their Ecoboost. The factory units are woefully inadequate and can heat soak very easily. It is very common for an Ecoboost with a factory intercooler to see 150+ degree charge temps after one 3rd gear pull. This is with outside temperatures being in the 90’s. Generally your street intercoolers (made by cv fab, garret, cobb, etc.) are a direct replacement for the factory intercooler while retaining the factory grill shutters. These tend to work well for the everyday car below 500hp that doesn’t do any real track racing, or extended high speed pulls. For vehicle in more extreme climates, wanting to make big power, or vehicles that are going be doing track day sessions we highly recommend the larger Race intercooler, or adding methanol injection to your vehicle to drop your charge temperatures below ambient.

After months of engineering and development, cp-e™ is proud to release the Stage 2 ΔCore EcoBoost FMIC for the Mustang EcoBoost. We took what worked with our initial FMIC and pushed the envelope even further for the most powerful high horsepower builds. With several sponsored EcoBoost Mustangs outrunning V8’s with forced induction at the track, we knew that we needed to step up our cooling for the high power builds.

In stock

$455.60

After months of engineering and development, cp-e™ is proud to release the ΔCore EcoBoost FMIC for the Mustang EcoBoost. The stock intercooler does an excellent job for the everyday driver that doesn’t want to modify their car. However, once you find that itch to go faster, you need the Best Mustang EcoBoost FMIC.

Please enter a valid URL and content for your button.

Best Mustang EcoBoost FMIC Features

22 x 6.5 x 5″ Core Size

Low Turbulence End Tank Design

Minimal Pressure Drop

Maximized Core Design

Substantially Lower & More Consistent Charge Temps

Bolt-in Design, No Vehicle Modification Needed

Fully Cast End-Tanks

cp-e™ started off by determining the maximum size core that could fit without major modification to the vehicle. Our EcoBoost FMIC uses the bar and plate design to help ensure a high level of efficiency.

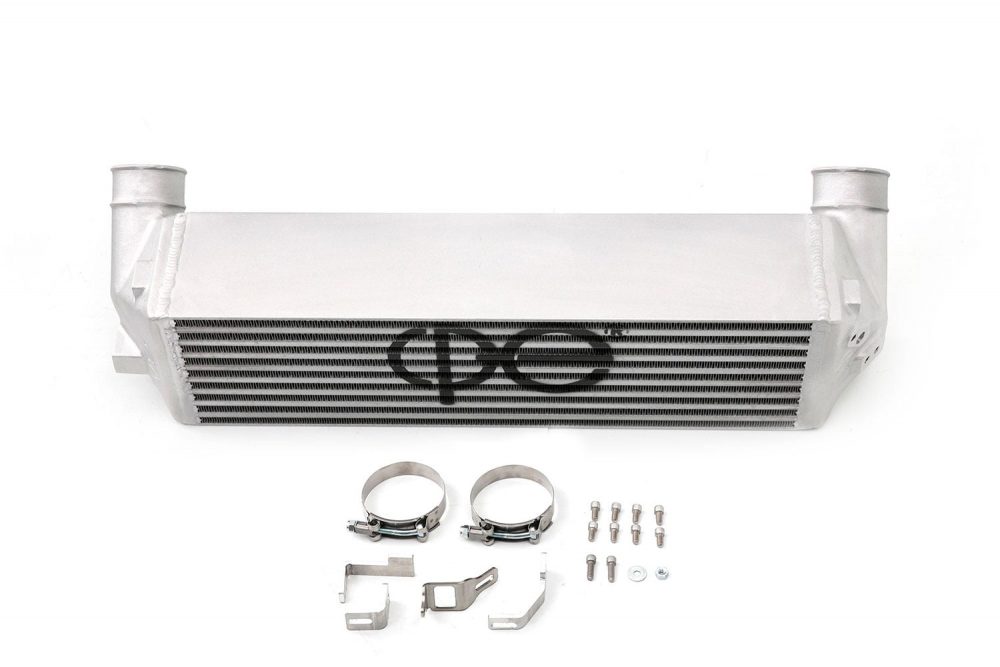

cp-e™ then set their sights on designing the Best Mustang EcoBoost FMIC endtanks, developing a design that not only encloses the monstrous core, but also requires no cutting, no drilling, and no permanent modification to the vehicle. With the laser cut brackets, the intercooler will mount in the stock location while matching up to the stock intercooler piping. Customers can now upgrade their piping when their power demands need it and modify in smaller increments.

Best Mustang EcoBoost FMIC Construction

As always, the cp-e™ intercooler includes cast endtanks that are welded and pressure tested with the core. What sets these endtanks from the rest is the engineering behind their shape and internal design. Hours of design and computer flow diagrams have been put into the tanks’ design to virtually eliminate turbulence within them. Many times, upgrading an intercooler causes increased turbo-lag, and an overall pressure loss. This is because of the large size of the core and the turbulence within the endtanks. By designing the endtanks to be smaller, and more efficient cp-e™ has found a way to minimalize turbulence in order to keep the drivability of the car high, while still enlarging the intercooler drastically.

The internal design of the endtanks directs the air to bring the most optimal airflow as well as an even distribution throughout the core. In intercoolers, the back half of the core only does 25% of the cooling. The endtanks have been designed to direct the air properly into the core for the most even cooling, giving the vehicle the most consistent conditions going into the engine.

Mustang EcoBoost FMIC Highlights

“Turbulence

Turbulence Reduction Fins

When creating an intercooler, the goal is to maximize size, while not increasing pressure drop. Larger cores almost always exhibit some form of pressure drop, due to the massive turbulence in a large core. cp-e™ has engineered a way around this by adding our carefully calculated turbulence reduction fins to smooth out the airflow from the end tanks to the main core.

In the real world this translates to extraordinarily low pressure drop and no loss in spool times.

Fully Cast Endtanks

Fully Cast Endtanks

When durability and high horsepower are the main goals, nothing beats casting. Cut and weld sections just don’t have close to the reliability of a cast piece. The problem is that casting is too expensive and out of reach for many manufacturers.

With the ultimate product as our end goal, we only accept fully cast end tanks for all of our front mount intercoolers.

Maximized Core Size

Massive Core Size

The EcoBoost platform has seen some incredible power gains in a very short period of time. With this in mind, we wanted to create a very large intercooler that would support both stock and big turbo applications. Even with this large size, no modification or removal of stock parts are needed.

This combined with our fin design makes this intercooler the best choice out there for both stock and big turbo upgrades.

Not California emissions compliant | No implied CARB certification | Off-road use only

CALIFORNIA WARNING:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Weight 45 lbs
Dimensions 34 × 24 × 12 in
